High Pressure Gas Flow Meter Designs: Vortex and Coriolis Engineering for Upstream Oil Pipelines
Selecting Vortex and Coriolis Meters for High Pressure Natural Gas and Crude Oil Lines
Quick Answer: For dry high pressure natural gas lines, a vortex flow meter gives stable readings at lower cost for DN50 to DN300. For wet gas, condensate, or direct mass flow, a Coriolis meter is the stronger choice because it measures mass flow independent of density. Silver Instruments supplies both designs with 4-20 mA HART, Modbus, and high pressure bodies up to Class 600 or PN100.
Silver Automation Instruments is a flow meter manufacturer and supplier with experience in upstream oil and gas projects across Southeast Asia, the Middle East, and Latin America.
What High Pressure Means in Upstream Oil Pipelines
Upstream oil pipelines move natural gas, associated gas, and crude oil at pressures from 30 bar to 150 bar. Some gas lift lines reach 200 bar. Pipe sizes in the field typically run from DN50 to DN300. Temperatures are often between -20 °C and 80 °C. Flow ranges change daily, so a meter must survive pressure shocks and fast flow swings.
Most engineers skip this part until a meter drifts after a pressure spike. We have seen this on customer sites many times. A gas processing operator in Malaysia sent us a DN80 line at 55 bar. The gas flow was 2500 kg/h. The line ran 24 hours, with ambient temperature around 35 °C. They needed a meter that would hold calibration through pressure swings.
Vortex Flow Meter Design for High Pressure Dry Gas
In practice, a vortex flow meter works well on dry produced gas. The meter has no moving parts. The bluff body creates a shedding frequency that relates to gas velocity. Higher gas density at high pressure strengthens the vortex signal. High gas density is a practical advantage on high pressure natural gas lines.
For a high pressure gas pipeline, specify a 316L stainless steel body and flanges rated for Class 600 or PN100. The meter should have built in pressure and temperature compensation if you need standard volume flow. Accuracy is usually ±1.0 percent of reading for gas and ±0.75 percent for liquid. Turndown is about 15:1 to 20:1. Straight run is important. Plan for 20D upstream and 5D downstream. DN50 to DN300 covers most upstream gas lines.
Because the vortex meter is inline, the meter adds a small pressure drop. At 55 bar the pressure drop is often less than 200 mbar. Output options include 4-20 mA HART, pulse, and Modbus RTU. Silver Instruments supplies vortex flow meters with ATEX Zone 1 certification for gas gathering stations and wellhead pads.
Coriolis Flow Meter Design for High Pressure Wet Gas and Crude Oil
Coriolis meters measure mass flow directly. Density changes do not affect the mass flow reading. Direct mass flow matters for wet gas, condensate, and high pressure crude oil where the fluid mix shifts. Accuracy is typically ±0.1 to ±0.2 percent of reading fo

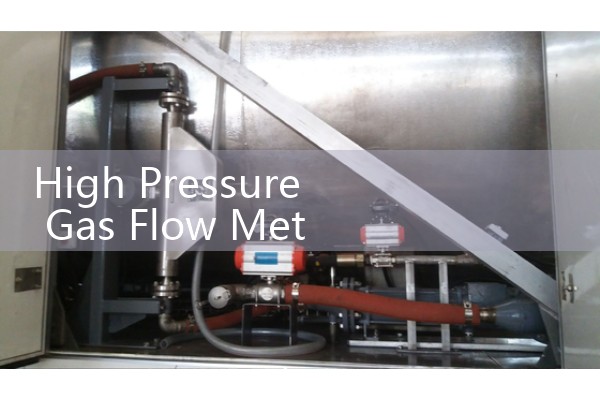

_600x400.jpg)
A high pressure Coriolis meter has thicker tube walls and heavier flanges. Common materials include 316L stainless steel for the sensor tubes and carbon steel or stainless steel flanges. You can find pressure ratings from PN100 to PN400 depending on size. For DN15 to DN100, a Coriolis meter fits most upstream measurement tasks. Above DN100, cost and weight increase quickly. Still, for wet gas allocation or crude oil blending, the cost is justified.
Unlike a vortex meter, a Coriolis meter needs almost no straight run. The meter also delivers mass flow, density, and temperature from one instrument. One Coriolis meter reduces the number of transmitters on a skid. Silver Automation Instruments offers Coriolis mass flow meters with 4-20 mA HART, pulse, and Modbus. ATEX Zone 1 and SIL 2 options are available for upstream oil pipeline duty.
Vortex vs Coriolis for Upstream Oil Pipelines
Use a vortex meter when the gas is dry and stable, pipe size is DN80 or larger, and capital cost matters. Use a Coriolis meter when the stream includes liquids, density changes fast, or you need mass flow for allocation. High pressure gas lift lines often use vortex meters. High pressure crude oil and wet gas headers lean toward Coriolis.
Last year a customer in Nigeria asked us for a high pressure gas meter on a DN150 line at 72 bar. The engineering team first looked at Coriolis. After checking the dry gas composition, we recommended a vortex flow meter with 316L body and Class 600 flanges. The vortex meter cut cost by about 45 percent and still met the accuracy target.
FAQ: High Pressure Gas Flow Meter Selection
What flow meter works best for high pressure dry natural gas?
A vortex flow meter with 316L body, Class 600 flanges, and temperature and pressure compensation works best for DN50 to DN300 dry gas lines.
Which high pressure flow meter handles wet gas or condensate?
A Coriolis mass flow meter handles wet gas and condensate because it measures mass flow directly and ignores density changes.
What accuracy can I expect from a high pressure Coriolis meter?
Expect ±0.1 to ±0.2 percent of reading for mass flow and ±0.0005 g/cm3 for density on a high pressure Coriolis meter.
Do vortex meters need straight run on high pressure gas lines?
Yes. Plan for 20D upstream and 5D downstream for a vortex flow meter. A Coriolis meter needs almost no straight run.
Can Silver Instruments supply ATEX certified high pressure gas flow meters?
Yes. We supply vortex and Coriolis flow meters with ATEX Zone 1 certification for upstream oil pipeline use.
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Our engineers will quote a high pressure gas flow meter that fits the line and the accuracy target. Tel: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610.
